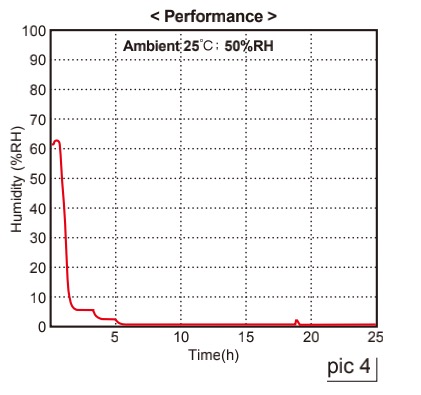

C2E series humidity range is <5%RH.
It is mainly used for storing moisture sensitive devices(MSDs) of level 5,5a,6.
SMD packages not sealed in a MBB may be placed in a dry atmosphere cabinet, maintained at not greater than 5% RH.
Storage in these dry cabinets may be considered equivalent to storage in a MBB with unlimited shelf life.
1. Specifications:
Humidity range | <5%RH (Auto) |
Display precision | ±3%RH, ±1℃ |
Outside dimension | W1200*D695*H1820mm |
Inside dimension | W1198*D645*H1618mm |
Capacity | 1250L |
Shelves | 5 units |
Color | Black |
Voltage | 110V/220V (select voltage in advance) |
Structure | 1mm thick carbon steel with antistatic paint |
Door | Handles, airtight magnetic sealers and reinforced glass |
Grounding wire | 1MΩ（940mm long） |
ESD Paint | 106--109Ω(surface resistance) |
Power consumption | Ave. 105Wh; Max. 300W |
2. Features:
2.1 Modular Design: This is a modularly designed dry cabinet. The main modules are display controller, power box, dehumidifier, shelf, caster wheel. All of the modules can be replaced easily.
2.2 Green Design: The performance of the dry cabinet can be upgraded by just changing the modules. There will be no waste materials created to pollute the environment. The old modules can be collected and sent back to the maker. Dryzone dry cabinets can be used as long as the cabinet structure is in good condition. It means that the product life could last for 10 to 20 years.
2.3 Flexible Design: The users can choose more dehumidifers in the beginning or can add these modules in future. The units are so flexible that users can select and install modules at any time.
2.4 Easy Operation Design: It is a plug and play dry cabinet. Considerable training costs are saved.
3. Options:
*Data Logger with RS232 port
*Door opened alarm
*Over humidity alarm with light and buzzer
*Extra shelves
*Nitrogen filling Module& flow meter
